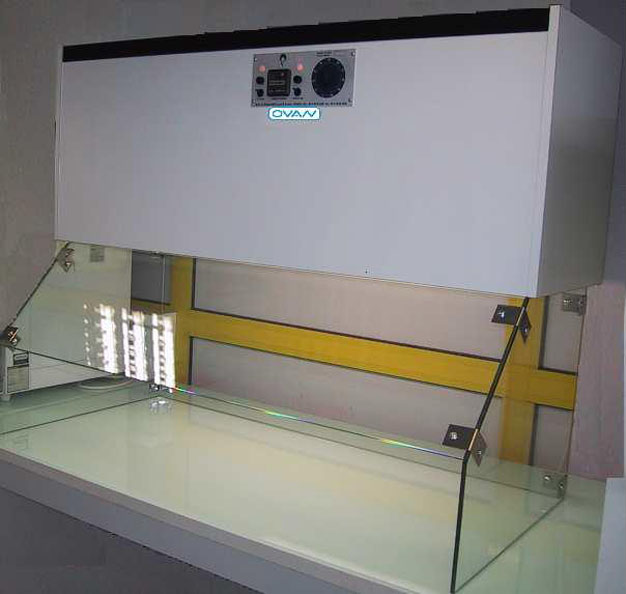

Chemichal Hood with Charcoal Filter



Filtration is performed thanks to activated active carbon filter, responsible to absorve
all gases and vapours present in the air flow going through.
Air is taken in the work volume thanks to the negative pressure sucked by a very
silent motor/impeller, once is filtered the air is blowed out on the top of the unit back
to the room.

· Security glass
· Plexi glass top slip Windows
· No duct
· Integrated prefilter
· Portable
· Silent

Especificaciones Técnicas

Model

                                       Ovanhood 9

Reference

                                    50000-00131

                                    50000-00111

Overall Dimensions

(mm)

                                    925 x 1030 x 600

Useful Dimensions

(mm)

                                   905 x 700 x 592

Electr.Connection

(V – Hz)

               220V-50Hz, single phase

Serial Equipment

Carbon Active Filter

socket

                                                           NC 35 Type

Prefilter

                                                    85% Gravi Intregrated

Light

                         White Fluorescent tubes  400-600 lux

ECM Fan

adjustable



Accesorios

Options

reference

Bactericide UV Lamp

50000-01115

Resin counter top with steel base

50000-01116

Charcoal Filter : CALK 3/9

50000-01117

Other options available – under request
