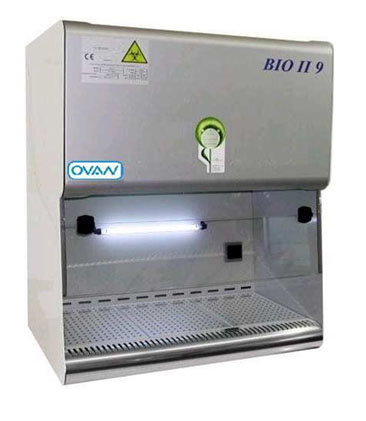

BIOLOGICAL SAFETY CABINET TYPE II (A) EN 12 469



The laminar flow (Class 100FS 209E,ISO 5) sweeps the work space and protects the product.

The air flow is completely recycled through the perforated grills around the work surface and the operator protection

is made by air streaming in front of the work surface : about 30% of the air flow is thrown through an Hepa filter



  • Easy startup
  • Painted epoxy steel frame
  • Perforated Stainless Steel Work Surface (304L) / 3 elements
  • Removable front grill
  • Reclining front window with auto block system
  • Easy Maintenance By Front Access
  • Low sound level
  • LCD screen (velocity, clogging state, alarms display)
  • UV Light included



Especificaciones Técnicas

Model

Biovan II 9

Biovan II 12

Reference

50000-00110

50000-00111

Overall Dimensions

(mm)

922 x 1080  x 640

1229 x 1080 x 640

Useful Dimensions

(mm)

919 x 500 x 495

1226 x 500 x 495

Weight (Kg)

120

150

Front aperture

(mm)

Closed: 183                                      Open: 405

Power (W)

1500

Electr.Connection

(V – Hz)

220V-50Hz, single phase

Serial Equipment

Electrical power

socket

(1) IP 55

HEPA Filter

H14 with laminator

Light

Fluorescent tube  installed outside the working enclosure.

ECM Fan

Automatic regulation



Accesorios

Options                                                                                     Reference

Stand painted in Epoxi for Biovan II

5000001106

Gas inlet for Biovan II

5000001107

Other options available .- under request
