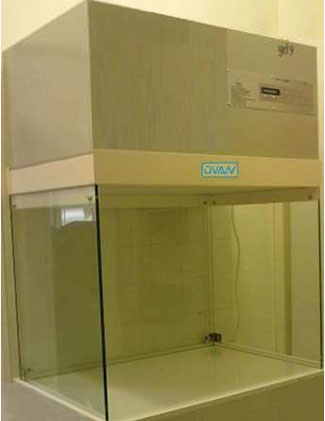

Vertical Laminar Flow Cabinet



IV Ovangel is a laminar flow cabinet with a clean working area of Class ISO 5 ( ISO 14644)

Working function by sucking air through a G-4 prefilter and blowing it through a Hepa H-14 filter .



  • Vertical Laminar flow: ISO 5
  • Hepa filter with Gel sealant fitting Low noise thanks to DC motor Modular concept
  • CPT digital control
Especificaciones Técnicas

Model

IV Ovangel 9

IV Ovangel 12

Reference

50000-00121

50000-00122

Overall Dimensions

(mm)

930 x 1190 x 610

1230 x 1190 x 610

Useful Dimensions

(mm)

900 x 660 x590

1190 x 660 x 590

Weight (Kg)

90

100

Nominal Power (W)

300

300

Electr.Connection

(V – Hz)

230 -115 V-50/60Hz, single phase

Serial Equipment

Prefilter

W Type

Filter

Minipleat: 99,995% MPPS – EN- 1822µ

Light

Fluorescent: 400 – 600 lux.

Fan

ECM



Accesorios

Options                                                                                     Reference

Epoxi paitned base for IV  OvanGel

5000001118

Other options available .- under request
