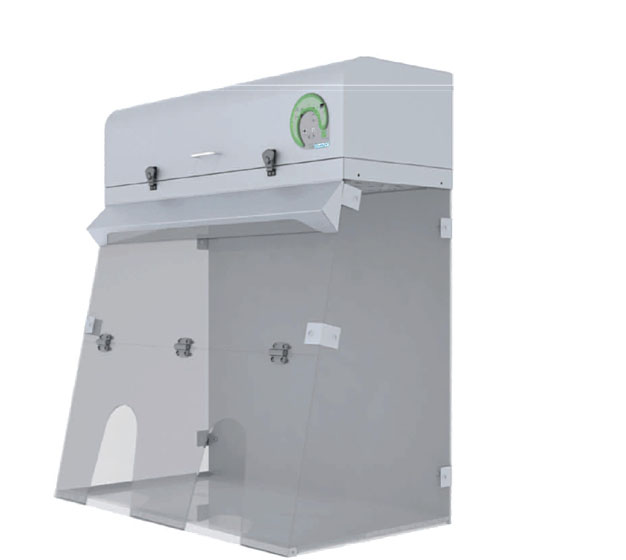

Vertical Flow Cabinet



The “Purovan” protects the user handling dangerous substances

(CMR) of category 1,2 and 3 and dangerous products subject to a limit value (TLV).

•    Polycarbonate sidewalls

•    Back in Trespa material

•    Hinged front window, polycarbonate

•    Exhaust ventilation unit in epoxy painted.

•    Low noise level

•    Charcoal filter active on organic vapors and solvents, acid fumes, basic vapors….

•    Filtration classification (Type P, Type V, Type PV)

•     Integrated lighting (excluding working area)

•    Visual and sound alarms every 60 hours/ secure system

•     Easy access to filters, easy maintenance (no tools required)

•     The Fan doesn’t need maintenance

•    Face/ front velocity between 0.4 and 0.6 m/s

(Between 78 ft/min and 90 ft/min) (anemometer for monitoring) Work plan and dripping/secure tray in polypropylene

•    Sampling chamber

Technical Specifications

Model

         Purovan 9

Purovan 12

Purovan 19

Reference

50000-00115

50000-00116

50000-00117

Overall Dimensions (mm)

1000x 1150  x 577

1000x 1150  x 577

1000x 1150  x 577

Useful Dimensions (mm)

966x 855 x 520

1166x 855 x 520

1566 x 855 x 520

Weight (Kg)

80

100

12030

Electr.Connection (V – Hz)

220V-50Hz, single phase

220V-50Hz, single phase

220V-50Hz, single phase

Serial Equipment



Prefilter

Carbon active

Carbon active

Carbon active

Filter HEPA

Orly in P version

Orly in P version

Orly in P version

Light

Fluorescent: 700 lux

Fluorescent: 700 lux

Fluorescent: 700 lux

Fan

Maint. Free < 64 dB

Maint. Free < 64 dB

Maint. Free < 64 dB

Accessories

Options                                                                                Reference

HEPA Filter H14

5000001123

Prefilter G3

5000001122

Discharge hooper

u.r.

Sampling pump

u.r.

Bulb test: detection by color tube

u.r.
