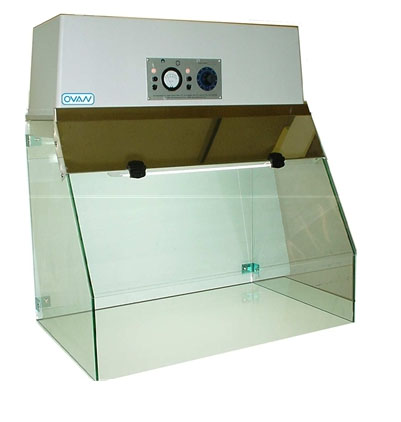

VERTICAL FLOW CABINET



Air is taken from the top through a G4 pleated prefilter.The air I sucked by a very silent engine and then blowd into a Minipleat Aboslute Filter HEPA directly to the glass work area.



· Security glass work area
· Plexi glass top flip window
· Class 100

· Blue Gel conception
· Analogue control

Technical Specifications

Model

VERTIOVAN MV 9

Reference

50000-00120

Overall Dimensions ( mm )

925 x1030 x600

Useful Dimesions (mm)

905x700x592

Weight ( kgs)

30

Electr. Connexions (V – Hz)

220V 50Hz, single phase

Serial Equipment





Prefilter

W Type

Filter

Minipleat: 99,999% 0,3

Light

Fluorescent 400-600 lux

Fan

Speed variation



Accessories

Options

Reference

UV Lamp Vertiovan MV 9

50000-01108

Resin counter top with steel base

50000-01109

Other options available .- under request
